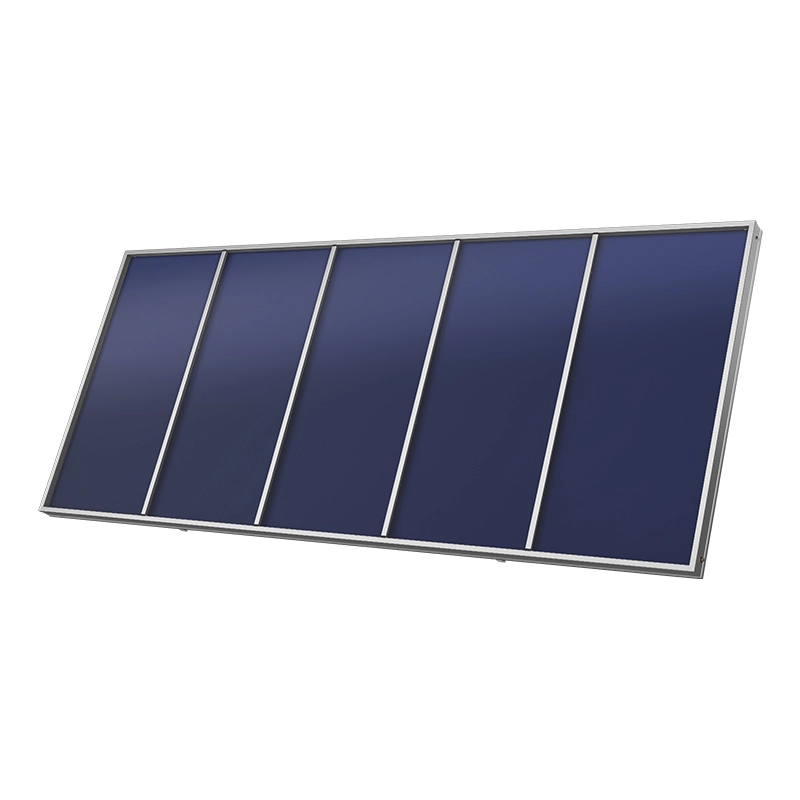

Standard Commercial Flat Plate Solar Collector
Efficient heat absorption: Enlarged absorber area paired with selective coating improves solar-to-heat conversion.
Easy installation: Modular and integrated design significantly reduces installation time and labor costs.
Durable in all environments: Works reliably even in low-light and low-temperature conditions.
Multi-purpose use: Supports heating needs across homes, farms, and industrial facilities.
Product Overview
Our flat plate solar collector is designed with a large heat-absorbing surface and integrated structure, offering high thermal performance and easy installation. Built with premium photothermal materials, it ensures long-lasting efficiency and durability across various climates.
Application Scenarios
Residential and commercial hot water systems
Solar space heating
Livestock barn heating
Agricultural drying processes
Product Advantages
Efficient heat absorption: Enlarged absorber area paired with selective coating improves solar-to-heat conversion.
Easy installation: Modular and integrated design significantly reduces installation time and labor costs.
Durable in all environments: Works reliably even in low-light and low-temperature conditions.
Multi-purpose use: Supports heating needs across homes, farms, and industrial facilities.
Core Technologies
Exclusive absorber coating: Featuring both "blue film" and "black film" with optical efficiency up to 0.813.
Advanced internal flow channels: Finite element optimized layout ensures efficient and even heat transfer.
Thermal insulation system: Special “insulation cabin” keeps heat loss to a minimum, with a coefficient as low as 2.2 W/m²·K.
Product Parameter
Collector type | EFPC115 | EFPC150 | |
outline dimension （mm） | 5030×2270×140 | 5960×2520×166 | |
Surface area (m2) | 11.42 | 15 | |
Lighting area (m2) | 10.48 | 13.92 | |
net weight （kg） | 235 | 315 | |
Working pressure (MPa) | 1.0MPa | ||
Interface size/number | HTC40 quick connector | ||
Number of interfaces | Two | ||
Maximum operating temperature (℃) | 150 | 150 | |
Peak efficiency | 0.79 | 0.81 | |
rated efficiency ① | 0.66 | 0.68 | |
peak power （KW） | 8.28 | 11.26 | |
specified power （kW）② | 400W/m² | 1.7 | 2.03 |
700W/m² | 4.3 | 5.84 | |
1000W/m² | 6.85 | 9.4 | |
displacement volume （L） | 11.5 | 13.8 | |
pressure drop | 2kPa@0.22kg/(㎡·s) | ||
Installation point | Four | ||
