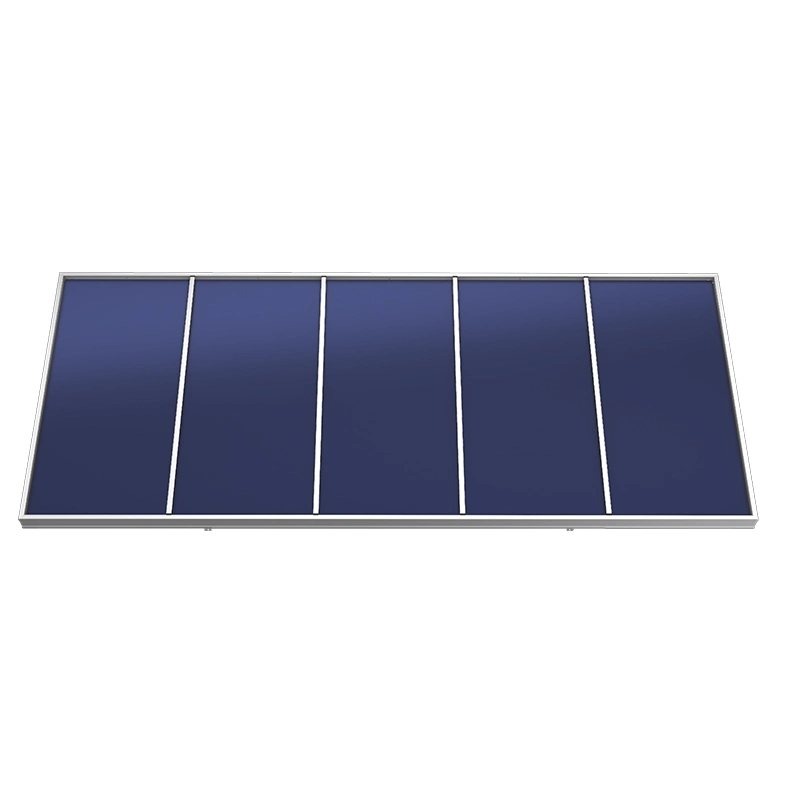

Flat Plate Type Solar Collector
High efficiency of heat collection: the large plate design increases the heat collection area, and the high efficiency of heat collection technology is supported.
High integration: the degree of structural integration is high, which simplifies the installation process, greatly shortens the installation time, and facilitates later maintenance, saving labor costs. .
Stable and durable: it can operate stably in complex environment, has a long product life, and can provide thermal energy for a long time.
Wide application: suitable for heating, industrial heat and other fields, to meet the thermal energy needs of different scenarios, to achieve green energy saving goals.
Product Description
This high-performance flat plate solar collector is built for demanding applications where consistent thermal output is key. With a reinforced housing, optimized fluid dynamics, and dual-layer selective coating, it delivers reliable performance for both domestic and industrial heating applications.
Use Cases
Industrial hot water supply
Commercial space heating
Pig and poultry house heating
Crop and herb drying
Key Features
Large-scale absorption: High heat collection rate due to extended plate size and superior coating.
Integrated construction: Streamlined structure accelerates installation and simplifies maintenance.
Long service life: Corrosion-resistant materials and stable thermal insulation ensure durability.
Wide adaptability: Performs well in varied environments, from cold winters to high-heat operations.
Technical Highlights
Dual-coating options: “Blue film” and “black film” options provide versatile energy absorption choices.
Enhanced channel system: Flow pattern engineered for high delta-T performance.
Thermal insulation shell: Innovative structure reduces heat loss, ensuring stable output all day long.
Product Parameter
Collector type | EFPC115 | EFPC150 | |
outline dimension （mm） | 5030×2270×140 | 5960×2520×166 | |
Surface area (m2) | 11.42 | 15 | |
Lighting area (m2) | 10.48 | 13.92 | |
net weight （kg） | 235 | 315 | |
Working pressure (MPa) | 1.0MPa | ||
Interface size/number | HTC40 quick connector | ||
Number of interfaces | Two | ||
Maximum operating temperature (℃) | 150 | 150 | |
Peak efficiency | 0.79 | 0.81 | |
rated efficiency ① | 0.66 | 0.68 | |
peak power （KW） | 8.28 | 11.26 | |
specified power （kW）② | 400W/m² | 1.7 | 2.03 |
700W/m² | 4.3 | 5.84 | |
1000W/m² | 6.85 | 9.4 | |
displacement volume （L） | 11.5 | 13.8 | |
pressure drop | 2kPa@0.22kg/(㎡·s) | ||
Installation point | Four | ||
