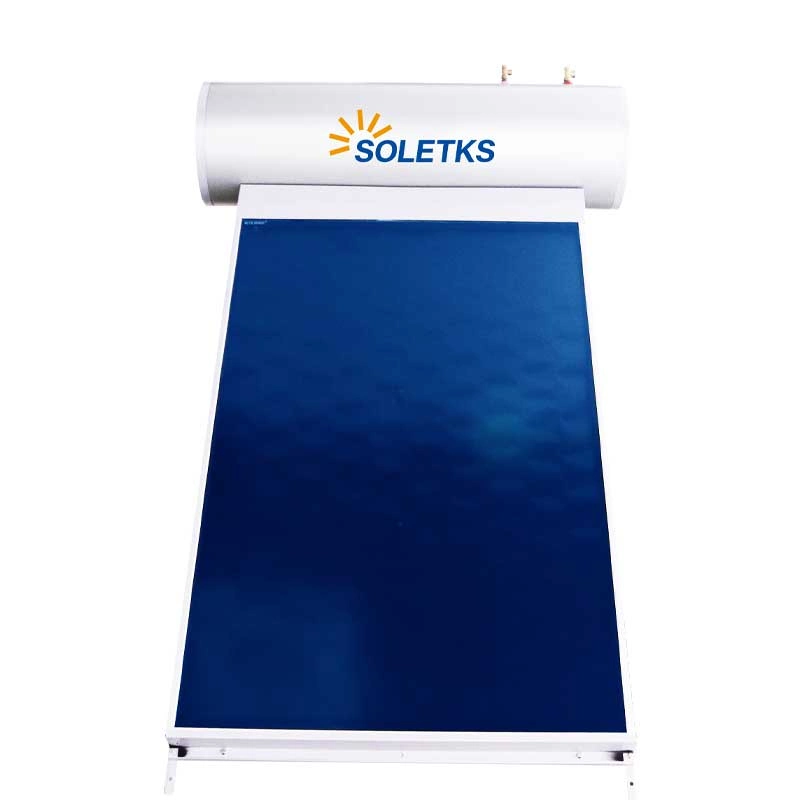

Integrated Solar Water Heater
• High Efficiency and Energy Saving
• Easy Transport and Installation
• Long Service Life and Low Maintenance Cost
• Versatile Applications
Core Strengths
Optimized Thermal Output: Incorporates advanced D-DOS coating technology for collectors, achieving up to 93% absorption, maximizing thermal efficiency even under low radiation.
Stable Performance: Designed for 0.6MPa pressurized operation, ensuring high-volume water delivery and reliable pressure across applications.
Self-Circulating System: Uses natural convection without pumps—silent, burst-resistant, and overheat-proof.
Installation Benefits
Modular Design: Streamlined structure facilitates easy shipment and assembly.
Time-Saving Setup: Preassembled core modules cut labor time significantly.
Robust Engineering
Durable Tanks: Choose from stainless steel or enamel-lined tanks depending on water quality.
Reinforced Frame: Powder-coated galvanized brackets (2mm thick) for excellent corrosion resistance.
Flexible Utility
Capacities: 150L, 200L, 300L.
Mounting Angles: 0°, 25°, or 45° for diverse site conditions.
Scalability: Supports customized linkage systems for residential or commercial integration.
Product Models
Model | Collector | Tank (L) | Dimensions | Insulation | Working Pressure | Inner Tank Material | Outer Tank Material | Auxiliary Heating |
Soletks-ET-150 | Soletks2.0-2(x1) | 150 | φ520*1300 | PU foam 50 mm | 7 bar | 2.0 mm | Powder-coated steel | 1.5 KW |
Soletks-ET-200 | Soletks2.5-2(x1) | 200 | φ580*1310 | PU foam 50 mm | 7 bar | 2.5 mm enamelled | Powder-coated steel | 2.0 KW |
Soletks-ET-300 | Soletks2.0-2(x2) | 300 | φ580*1830 | PU foam 50 mm | 7 bar | 2.5 mm enamelled | Powder-coated steel | 2.0 KW |
• Corrosion Protection: All models equipped with magnesium anode.
