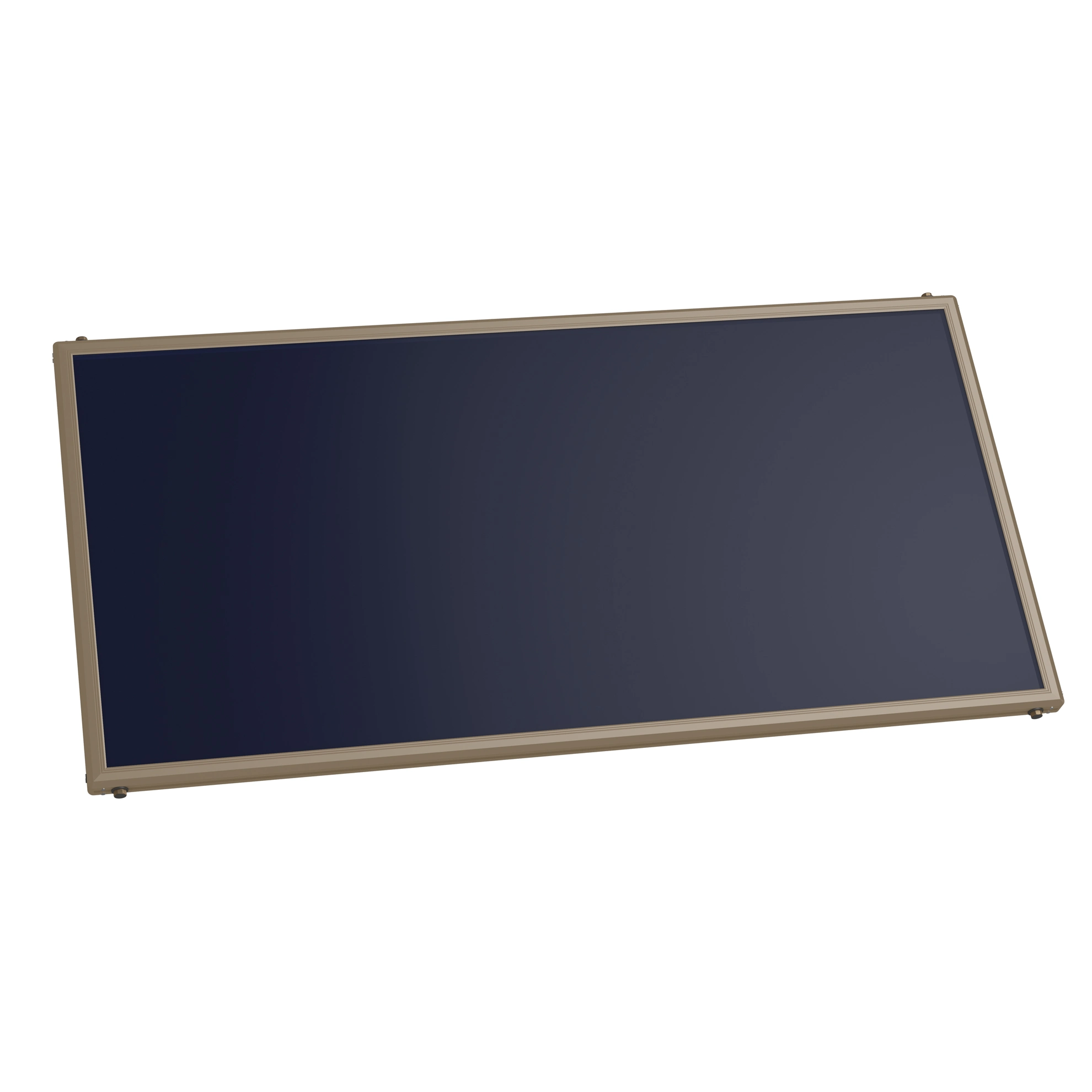

Ultra Slim Solar Collector
1.Only 50mm thick, saving 38% in transportation space and cost.
2.35kg/m³ polyurethane high-pressure one-time foaming technology ensures excellent thermal insulation.
3.Blue film technology with solar absorption rate (@AM1.5) α = 95% ±2%.
4.Unique industrial design that integrates seamlessly with architecture.
Modern. Minimal. Powerful. — Ultra-Slim Solar Collector
Searching for a collector that fits your space and style? The Ultra-Slim Solar Collector merges modern design with high-performance solar technology. At just 50mm thick, it cuts logistics costs by over one-third while delivering robust heat absorption via blue film coating and advanced insulation.
Why Choose It:
38% reduction in shipping volume & cost — Slim profile optimizes storage and transportation, lowering supply chain expenses.
Superior insulation with one-time high-pressure polyurethane foaming — Single-step foaming creates a dense thermal barrier to minimize heat loss.
Sleek architectural appeal — Minimalist design blends seamlessly with facades and exposed rooftops, enhancing visual aesthetics.
Blue film coating for 95%+ solar absorption — Nanoscale optical coating maximizes light capture for industry-leading energy conversion.
Redefining solar collection in millimeters：
Where slimness meets industrial-grade performance, this collector reshapes spatial possibilities for solar technology—whether upgrading urban rooftops or enhancing commercial buildings—with a "less is more" design philosophy.
Technical Specifications
Coating | Dimensions (mm) | Aperture Area (m²) | Working Pressure (MPa) | Connector Size | Number of Connectors | Frame / Color |
Blue Film | 2021×1021×50 | 1.9 | 0.6 | G1/2 Internal Thread | 4 | Aluminum Profile S10 / Metallic Gray |
