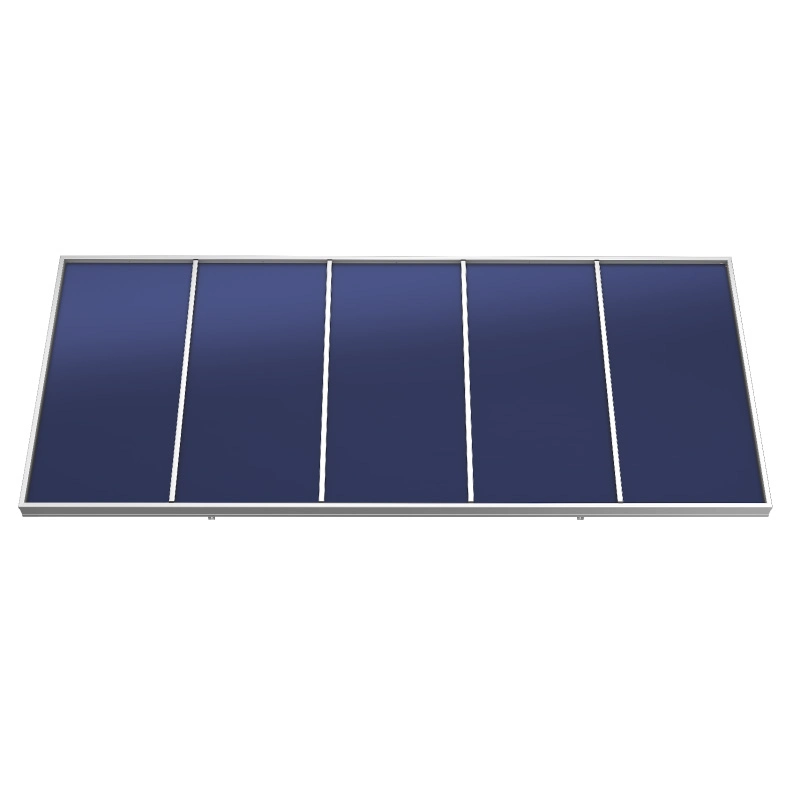

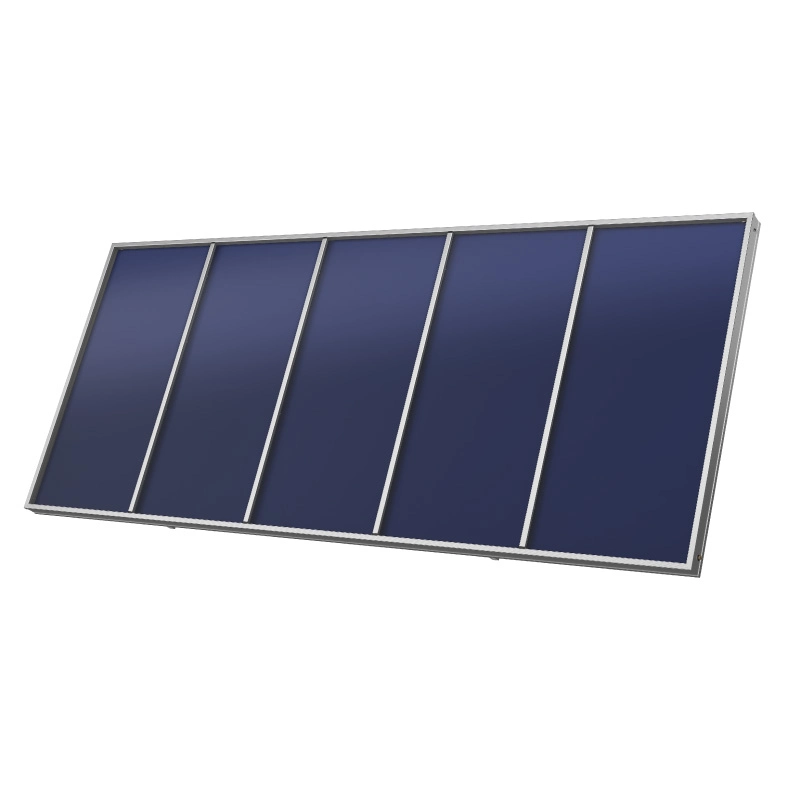

EFPC Flat Plate Collector Pro Max

Product Introduction

As an advanced solar thermal collector technology, the high-efficiency integrated large flat plate collector has become a crucial component in district heating systems due to its high efficiency, stability, and scalability. Compared to traditional energy heating systems, this innovative solution not only significantly reduces fossil fuel consumption and greenhouse gas emissions but also effectively lowers operational costs, achieving a win-win in economic and environmental benefits. Each unit features a profiled light-receiving area of up to 15㎡. Remarkably, it maintains over 55% output efficiency even in harsh environments with temperature differences exceeding 70℃ between working and ambient conditions. This makes it ideal for clean heating and district heating projects in high-altitude and high-latitude regions, reducing initial investment costs by over 30%, lowering operational expenses by more than 60% compared to coal-fired heating, and cutting carbon emissions by over 70%. Operating at 90℃, the system delivers stable thermal output with over 45% solar-to-thermal conversion efficiency. It is widely applicable in industrial and agricultural heat applications, including textile dyeing, industrial preheating, copper mining cleaning processes, and agricultural product processing disinfection procedures.

Since 2020, in China's Xizang, Qinghai, Xinjiang and other western regions, the efficient integration of large flat plate collector district heating projects has been gradually promoted and applied.

Core Technical Indicators

1. With a single-unit light collection area of up to 15㎡, this product maintains over 55% output efficiency even in harsh environments where the temperature difference between working and ambient conditions exceeds 70℃. It is ideal for clean heating and district heating projects in high-altitude and high-latitude regions, reducing initial system investment costs by over 30%, operational costs by more than 60% compared to coal-fired heating, and carbon emissions by over 70%.

2. The product maintains stable heat output with over 45% solar-to-thermal conversion efficiency at 90°C, making it ideal for industrial and agricultural applications such as textile dyeing, industrial preheating, copper ore processing cleaning, and agricultural product processing disinfection.

3. Product photothermal performance index: peak efficiency 0.8, rated efficiency 0.6, effective lighting area of a single unit 13.95 square meters, rated output power 9 kW, peak power not less than 11.3kW, flow channel pressure resistance 1.05MPa.

Process and Structure Innovation

1. High-transmittance anti-reflective cover plate technology: Through simulation design of multi-layer anti-reflective film and vacuum magnetron sputtering coating, the light transmittance of ultra-white cloth-pattern tempered glass is increased by 3%~5%, up to 95%.

2. High-temperature resistant cover plate sealing process: Utilize high-temperature resistant sealant and fully automatic encapsulation, with optimized composition to enhance thermal stability and reliability, preventing seal failure and material leaching under high-temperature conditions.

3. High-pressure-resistant and low-flow-resistance integrated flow channel: By optimizing the structure, selecting high-absorption coatings, and integrating CAD and CFD to refine the flow channel design, multiple small flow channels are created to enhance the collector's efficiency while maintaining pressure resistance and low resistance.

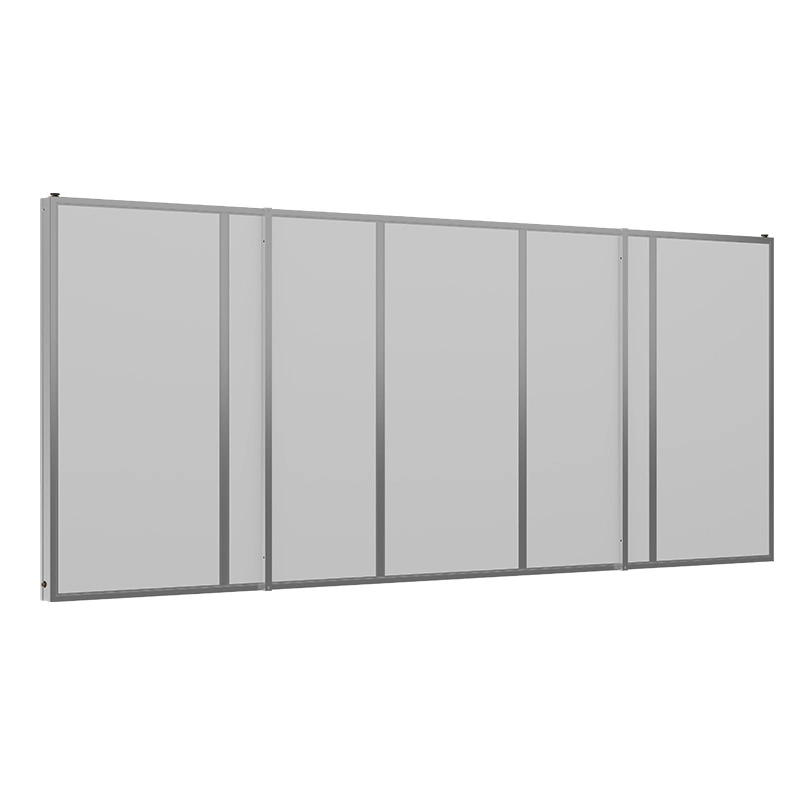

4. Thermal bridge-free truss structure: Insulated heat flow by special construction/material layout, frame built with lightweight, high-strength and low thermal conductivity materials, avoiding thermal bridge effect to reduce heat loss.

Product Features

The collector efficiency is 30% higher than that of the ordinary flat plate.

Designed with high pressure, large area, and fewer connection points, ensuring greater stability and reliability.

HTC Quick Connect patent, manually meets pressure resistance standards, simple and fast.

Unloading and installation are completed in just 5 minutes per unit, cutting the construction period by 80%.

The construction period is short, the auxiliary materials are less, and the system stability is high.

Special Introduction: EFPC 150 High Efficiency Integrated Large Flat Plate Collector

The EFPC 150 high-efficiency integrated large flat plate collector, with a single-unit area of up to 15㎡, surpasses the previously awarded "highest efficiency level certificate" for the EFPC115 large flat plate collector. The nearly 4㎡ increase makes it stand out as a true "super large flat plate." In the regional heating project of Saga County, Shigatse City, the high-efficiency integrated large flat plate collector has demonstrated its capabilities, providing high-quality clean thermal energy for over 100,000 square meters of buildings. This successful case even attracted the attention of the , which highly praised its heating efficiency, economic performance, and environmental friendliness. Meanwhile, the contributions of SOLETKS Group in promoting the construction of the ecological security barrier have also been fully recognized.

In the Ali region, the EFPC 150 high-efficiency integrated large flat plate collector has been widely adopted. This collector utilizes the company's proprietary membrane material, featuring controllable quality and exceptional performance. Rigorously tested by national laboratories, it achieves a thermal efficiency of 81.3%. Even in harsh high-altitude and cold environments, it maintains efficient heat collection with stable performance. Research data indicates that this super large flat plate system reduces land use by over 50%, cuts pipeline and accessory usage by more than 50%, and shortens installation time by 80%. The crane-lift installation method also significantly reduces workers' labor intensity and enhances installation efficiency.

Why choose SOLETKS?

SOLETKS Group specializes in the R&D and production of high-weather-resistant selective absorption coatings for flat-plate solar collectors, with its flagship product being the absorptive panels for these collectors. The company possesses multiple proprietary core technologies, including magnetron sputtering techniques for manufacturing high-weather-resistant selective absorption coatings (blue film), BONDING heat transfer technology, high-temperature selective absorption coating preparation methods, and phase change material (PCM) thermal storage systems. Having successfully developed the first fully automated magnetron sputtering production line for high-weather-resistant coatings, SOLETKS has accumulated extensive practical experience across the entire magnetron sputtering technology chain—from film system development and vacuum coating equipment design to equipment installation, process optimization, stable operation, and product testing. With a 73.5% compound annual growth rate over nine consecutive years, the company has established itself as a new energy enterprise providing integrated solutions for solar thermal utilization. Its offerings encompass clean energy thermal applications, addressing diverse needs such as urban district heating, rural distributed heating, industrial heat supply, and agricultural facility heating.
