High Temperature Steam System

High Temperature Steam System

The Solar+Heat Pump Coupled High Temperature Steam System integrates solar energy and air source heat pump technology to achieve high efficiency steam supply. The solar collector collects light energy and converts it into heat energy, heating the initial temperature of the heat pump and reducing the energy consumption of the heat pump. The two synergistically supply heat to the steam generator, converting water into high-temperature steam at up to 120°C. The steam generator can meet the demand for high-temperature steam for industrial production. It can meet the high-temperature steam demand requirements of industrial production.

Application Scenarios

Oil fields, factories and mines, hospital drying, printing and dyeing, slaughtering and other scenes that require high-temperature hot water and steam.

System Features

1. Solar energy greatly improves the base temperature on the evaporation side, and the air source heat pump is more efficient;

2. High-performance two-stage duplex coupling system, reliable operation;

3. The outlet medium temperature of the unit can reach 120℃, which can replace the traditional coal-fired boiler and electric boiler;

4. greatly reduce the overall recovery period of the equipment;

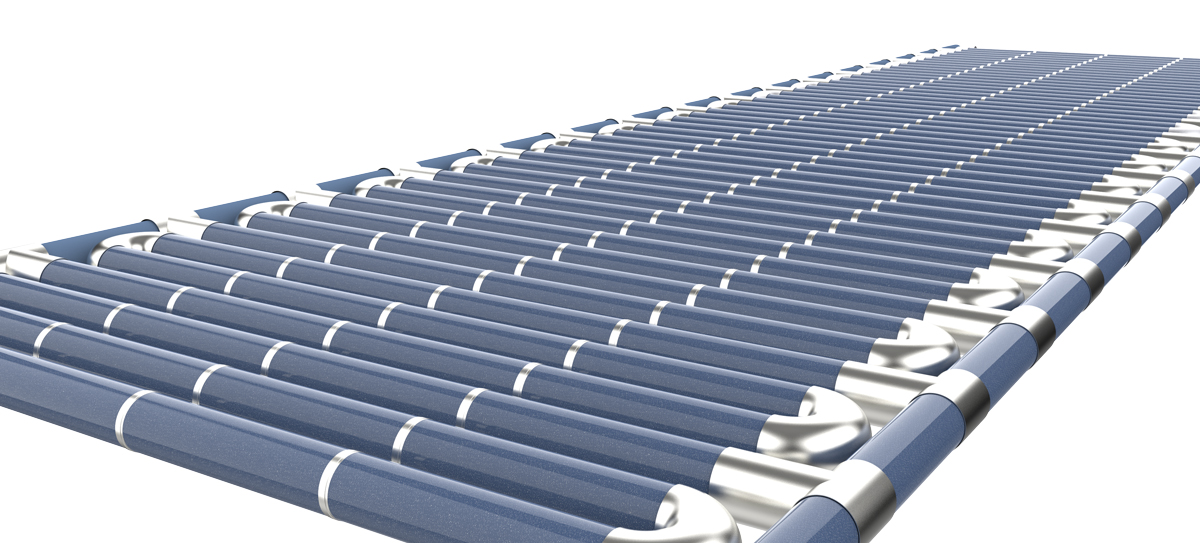

Air Collector Features

1. Air as the medium, no freezing and plugging no liquid leakage safer;

2. No need for secondary heat exchange, high thermal efficiency;

3. Super blue membrane technology, sunlight absorption rate of 95% +;

4. Lightweight design, assembly structure, more perfect integration with the building;

5. Large diameter low wind resistance tube structure, space optimization, flexible layout;

6. Long-life UV-resistant materials, stable performance without attenuation;
