Hybrid Design and Retrofit Solutions for Integrating Solar into Conventional Hot Water Systems
Looking to reduce operational costs and boost efficiency in your hot water projects? Discover how hybrid solar integration can deliver up to 45% annual energy savings.
Many existing hot water projects rely on a single energy source, limiting efficiency and increasing operational costs. Adding solar integration can dramatically improve performance, but requires careful design and installation. This guide outlines technical solutions for commercial hybrid hot water system retrofits that integrate solar with gas, electric, or boiler systems.
To integrate solar into a conventional hot water system, engineers typically add a solar thermal collector, connect it via a heat exchanger to the existing storage tank, and implement a control system for automatic switching. This hybrid approach maximizes solar contribution while ensuring backup from the existing gas or electric heater during low solar availability.
The following sections break down the key design principles, control strategies, and installation considerations for hybrid solar hot water retrofits.
1. How do you integrate a solar water heating system with an existing hot water system?
Integration starts with a solar thermal collector sized according to the daily hot water demand and climate data. The collector connects to the system through a heat exchanger—either external or built into the storage tank. The retrofit must include temperature sensors and a controller to decide when to draw heat from solar or from the conventional backup heater. Piping, insulation, and expansion tanks must comply with local codes .
2. Key challenges in retrofitting solar into a conventional system
Space constraints for mounting collectors and adding storage capacity.
Hydraulic compatibility between the existing pump system and the solar loop.
Control integration—ensuring the solar and conventional systems don’t compete or waste energy.
Freeze protection in colder climates (glycol loops or drain-back systems).
Scaling and corrosion prevention through water treatment and material selection .
3. How do hybrid solar hot water systems work?
A hybrid system combines solar thermal and conventional heat sources (gas, electric, or boiler). When solar energy is sufficient, it preheats water before it enters the main heater, reducing the backup energy needed. When solar is low, the backup heater covers the deficit. Advanced systems use variable-speed pumps and smart controllers to optimize efficiency .
4. Best control strategies for solar-conventional hybrid systems
Priority solar mode: Solar heats water until it reaches setpoint, then backup kicks in.
Parallel heating: Both systems operate together to meet large peak demands.
Seasonal settings: Adjust control parameters for summer/winter efficiency.
Remote monitoring: Cloud-based dashboards for performance tracking .
5. Commercial applications of hybrid hot water system design
In hotels, hospitals, and industrial kitchens, hybrid designs reduce fuel bills and improve sustainability ratings. For example, a 200-bed hotel retrofit in Southeast Asia achieved a 45% reduction in gas use after adding a 100 m² solar array and intelligent control .
6. Cost and ROI analysis for solar thermal retrofit projects
Costs vary based on system size, collector type (flat-plate vs. evacuated tube), and integration complexity.
Small commercial retrofit: $15,000–$25,000
Large facility: $50,000+
Typical ROI: 3–7 years, depending on fuel prices and solar resource availability. Adding government incentives or carbon credit revenue can shorten payback .
7. Integrating solar thermal with boiler systems
Boilers often run at high temperatures (60–90°C), which aligns well with evacuated tube collectors. A preheat storage tank between the collector loop and boiler inlet allows solar to cover a large share of the annual load. Proper anti-stratification design ensures temperature layers don’t mix prematurely.

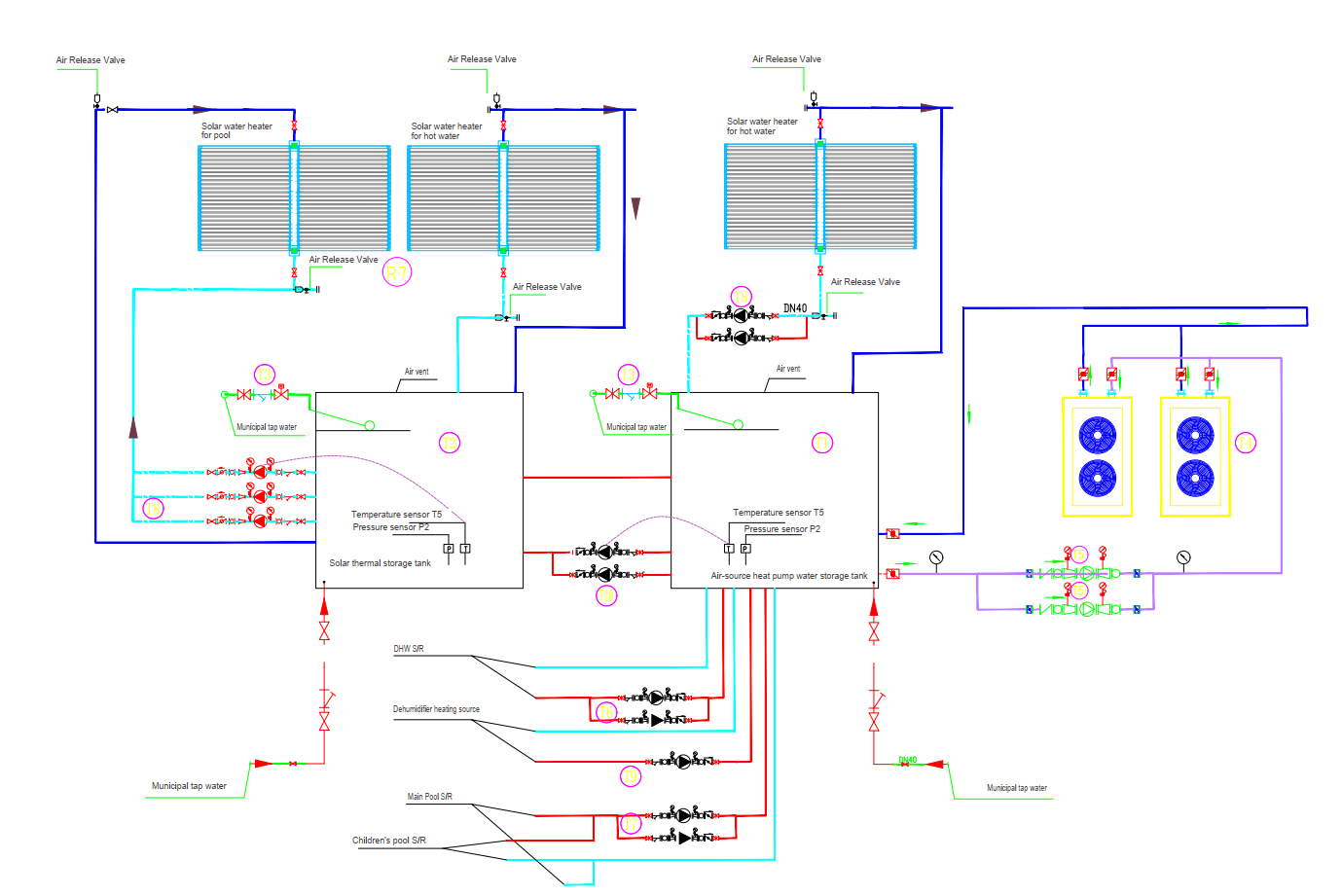

8. Solar-assisted heat pump integration methods
In some retrofits, a solar-assisted heat pump (SAHP) can deliver even higher efficiency. Solar collectors raise the inlet temperature to the heat pump, improving its coefficient of performance (COP). This is particularly effective in regions with moderate sun but high heating demand.
Case Study: Office Building Hybrid Hot Water Retrofit
In 2024, our team retrofitted a 15,000-liter hot water system in a large office complex by integrating 80 m² of evacuated tube solar collectors with existing gas boilers. The result was a 42% annual fuel saving and a projected payback period of 4.8 years. The system includes an advanced control module to automatically prioritize solar heating during peak sun hours.
Summary
Hybrid hot water system retrofits can boost efficiency and reduce operating costs. By carefully integrating solar with conventional systems, engineering contractors can ensure reliable performance, lower energy bills, and deliver strong ROI for clients.
